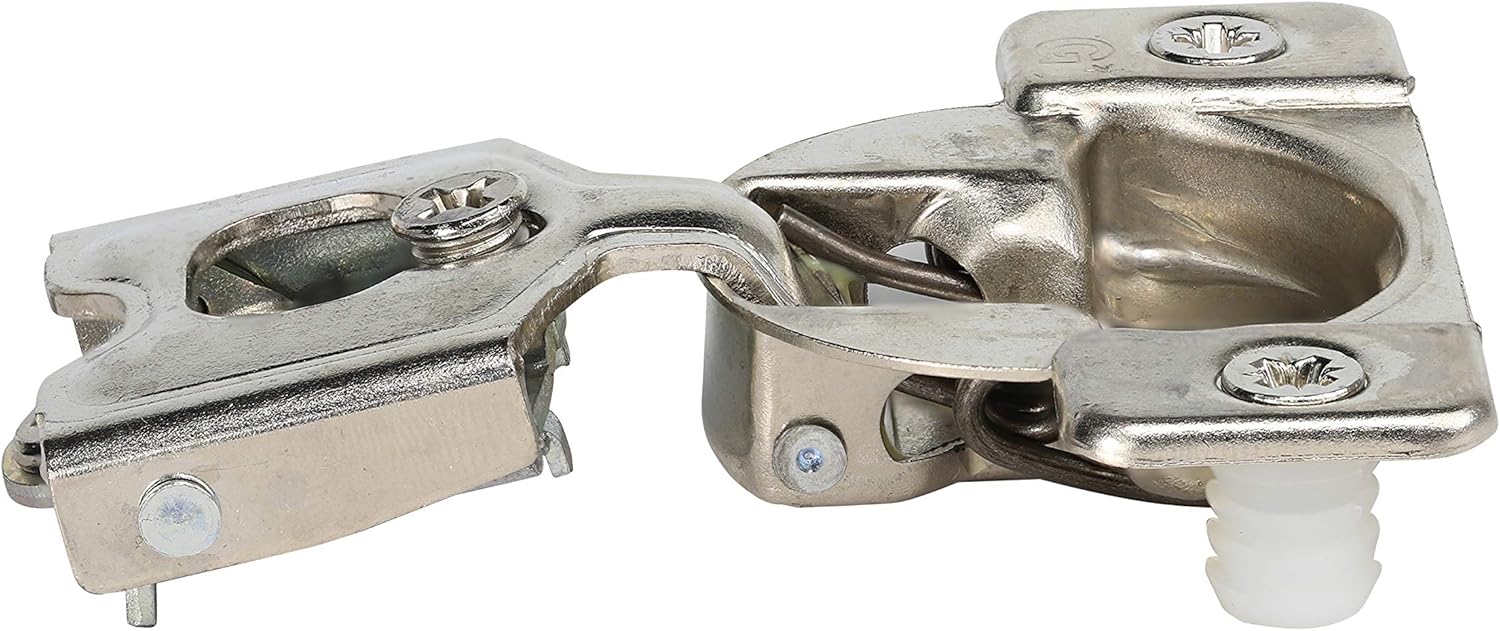

10 Pack Rok Hardware Grass TEC 864 108 Degree 7/16" (11mm) Overlay SELF CLOSE Press in Dowel Compact Cabinet Hinge 45mm Screw Hole Pattern, G04728-16

GRASS TEC 864 SELF CLOSE Cabinet Hinge "DOOR WILL SLAM SHUT" NOTE: SELF CLOSE means when you close the door and it gets within 2" of closing, it will pull itself close because of the spring in the hinge itself. It is different from SOFT CLOSE wherein the door gets about 2" away from closing, and then slows itself to softly close. MADE IN THE USA. One piece face frame hinge One piece hinge and base plate combination The 108 degree(s) opening angle hinge has three dimensional adjustment: (1) cam side adjustment (+/- 1.5mm) (2) cam depth adjustment (2.5mm out and .5mm in) and (3) slotted screw hole height adjustment (+/- 2mm) 11mm (7/16") cup depth front locating tabs position hinge on face frame works on door thickness from 13mm (1/2") to 19mm (3/4") 85 degree angle reduction clip available works with current grass insertion machinery Dowels can be removed easily to use screws TEC Self-close hinges are made in the USA of durable and long-lasting materials with time-tested design and manufacturing techniques. Every mechanism is tested for reliability and the user experience. All TEC 864 hinges feature a solid metal cup. All moving mechanism parts have all-steel construction. IMPORTANT: To determine the correct application Grass strongly recommends a trial mounting for all hinges and base plates.

• GRASS TEC 864 SELF-CLOSE Cabinet Hinge "DOOR WILL SLAM SHUT"; MADE IN THE USA; Dowels can be removed easily to use screws
• NOTE: SELF CLOSE means when you close the door and it get within 2" of closing, it will pull itself close because of the spring in the hinge itself. It is different from SOFT CLOSE wherein the door gets about 2" away from closing, and then slows itself to softly close.
• The 108 degree(s) hinge has three-dimensional adjustment: (1) cam side adjustment (+/- 1.5mm) (2) cam depth adjustment (2.5mm out and .5mm in) and (3) slotted screw hole height adjustment (+/- 2mm)
• Press in dowel wrap around mount cabinet hinge; 85-degree angle reduction clip available; IMPORTANT: To determine the correct application Grass strongly recommends a trial mounting for all hinges and base plates.
• 7/16 in (11mm) Overlay SELF CLOSING Hinge; 45mm Boring Pattern; 11mm (7/16") cup depth; One piece hinge and base plate combination
