Auto NMEA 2000 Converter /N2K NMEA2000 Converter Single/Dual Up to 13-18 sensors Signal for Boat Yacht Marine Converter - (A, Color Name: Connector)

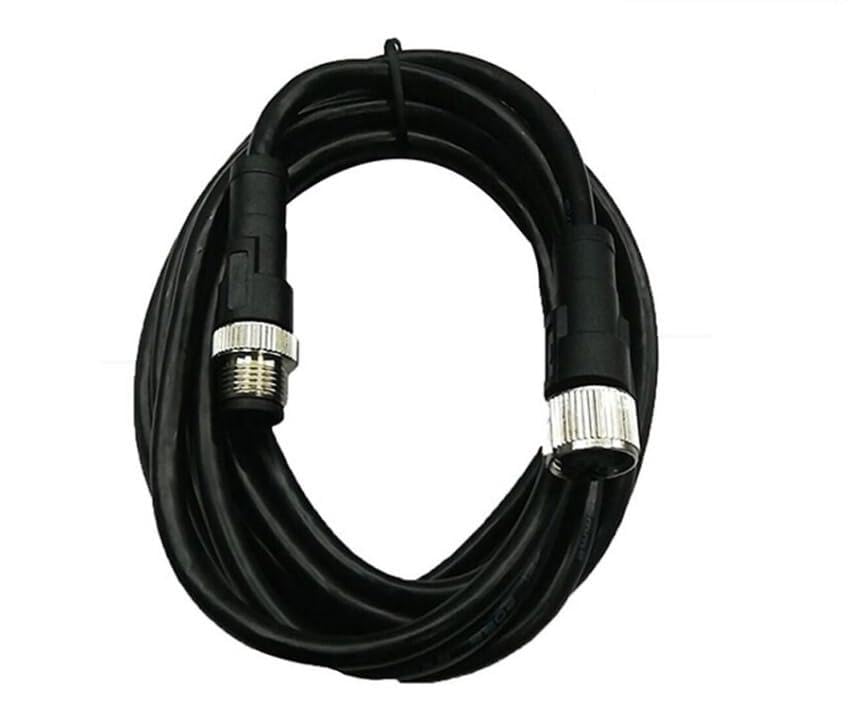

CX5003 Features:- Acquisition of sensor parameters and convert to NME A2000 parameters- Up to 18 sensors can be collectedSensor Parameter- Speed ratio adjustable range is 1~200- Engine tilt/trim 0~ 1 90ohm- Oil pressure 10~184ohm(0~10bar)- Temperature 301~22ohm(40~ 120'C)- Rudder 0~1 90ohm- Fuel level 0~ 190ohm- Freshwater level 0~1 90ohm- Wastewater level 0~ 1 90ohmEnvironmental- Operating Voltage 9 to 32 Volts(DC)- Power Consumption <120mA- Operating Temperature -30~75degrees- Storage Temperature -40~ 85degrees- Degree of Protection Ip67Connection1 , Connect to''Micro-C'' NMEA 2000 interface .2 , Connect the corresponding interface- according to the functional requirementsPackage includes:1*NMEA 2000 convert1*screwdriver1*owner's manualCX5005 ConnectorApplications:For CX5003 NMEA 2000 Multifunction Converter0.5-4 Meters CableItem specifics:Item type: Cables, Adapters & SocketsOrigin: Mainland ChinaVoltage: 12VOut power: 9 to 32 Volts(DC)Material type: Rubber and metalSpecial features: WaterproofItem size: Approx.100 x 68 x 50mmModel name: CX5003Interface: AV-OutItem type: Cables, Adapters & SocketsItem weight: 0.5kgItem name: Single/Dual NMEA 2000 ConverterItem type1: Cables, Adapters & SocketFit for: Suitable for boats and yachtsMultifunction converter: Boat NMEA2000 ConverterWastewater level: 0~190ohmRudder: 0~190ohmOil pressure: 10~184ohm(0~10bar)Speed ratio adjustable range: 1~200Converter: Dual NMEA2000 converterInterface 1: AV-OutNew nmea2000 adapters: NMEA 2000 Cables

• , Color Name: Connector

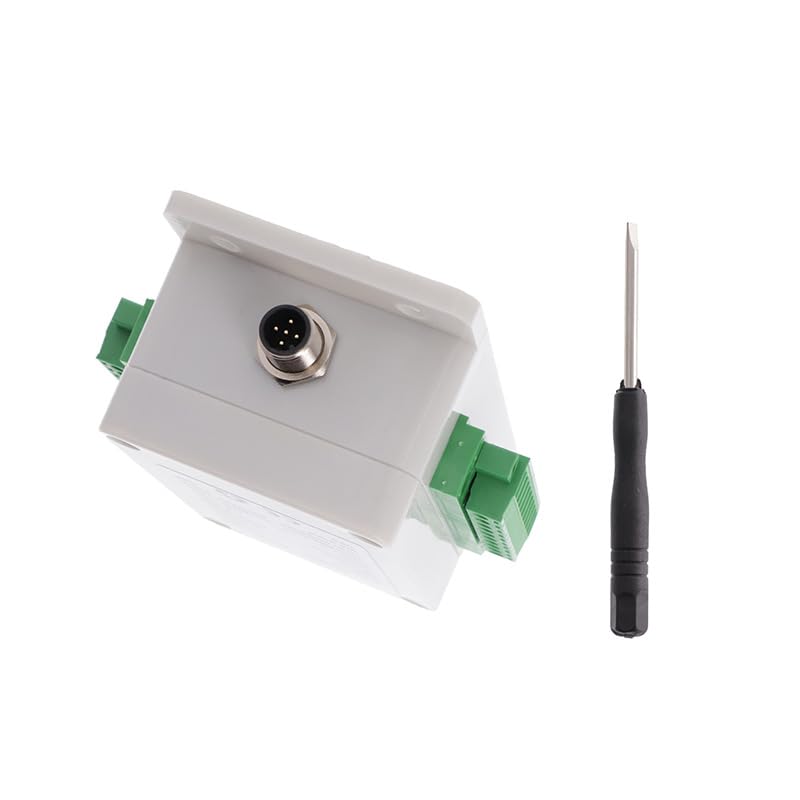

• Package Includes: 1*NMEA 2000 convert | 1*screwdriver | 1*owner's manual | CX5005 Connector
• - Acquisition of sensor parameters and convert to NME A2000 parameters
• - Up to 18 sensors can be collected
• Sensor Parameter
