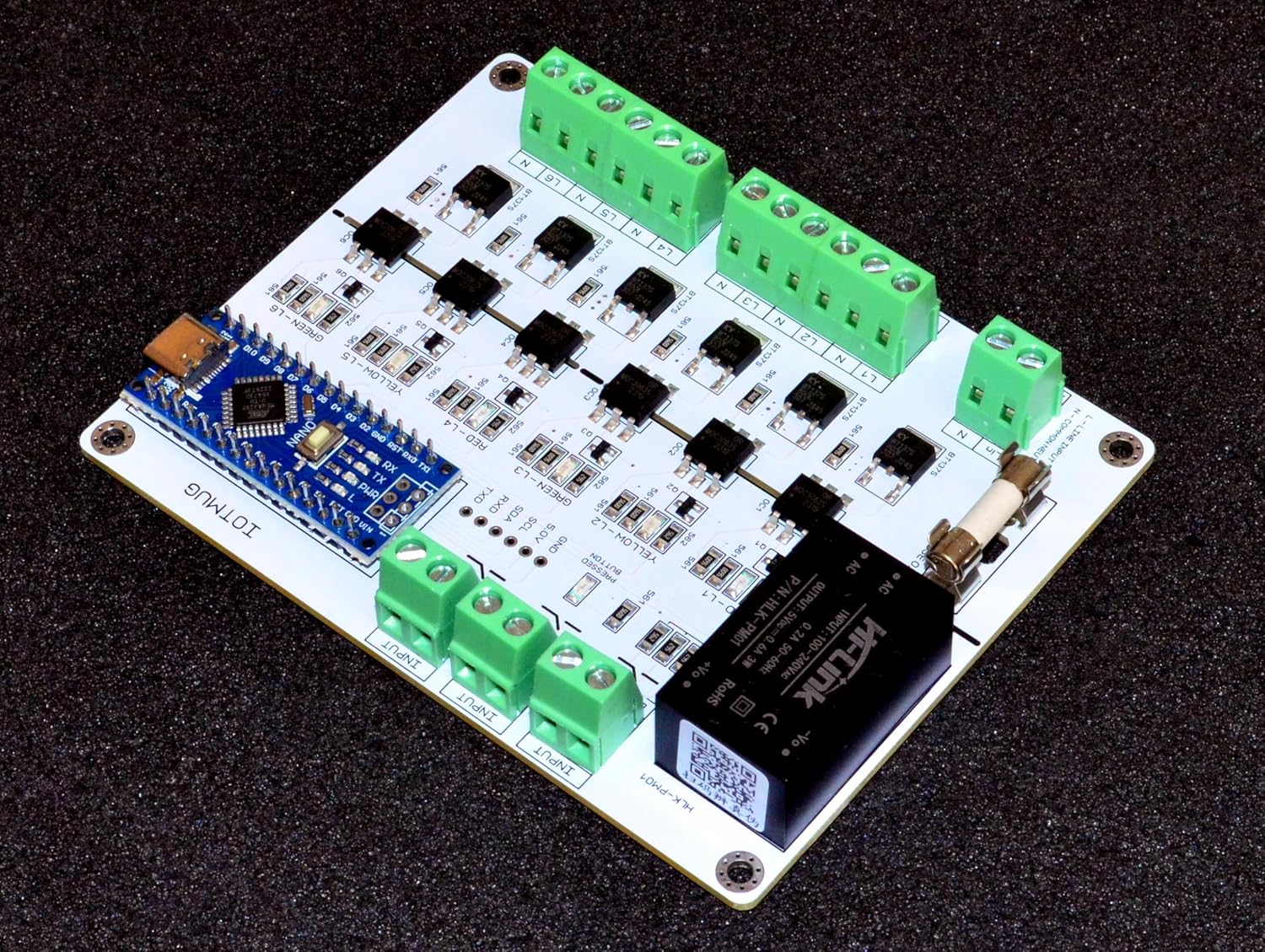

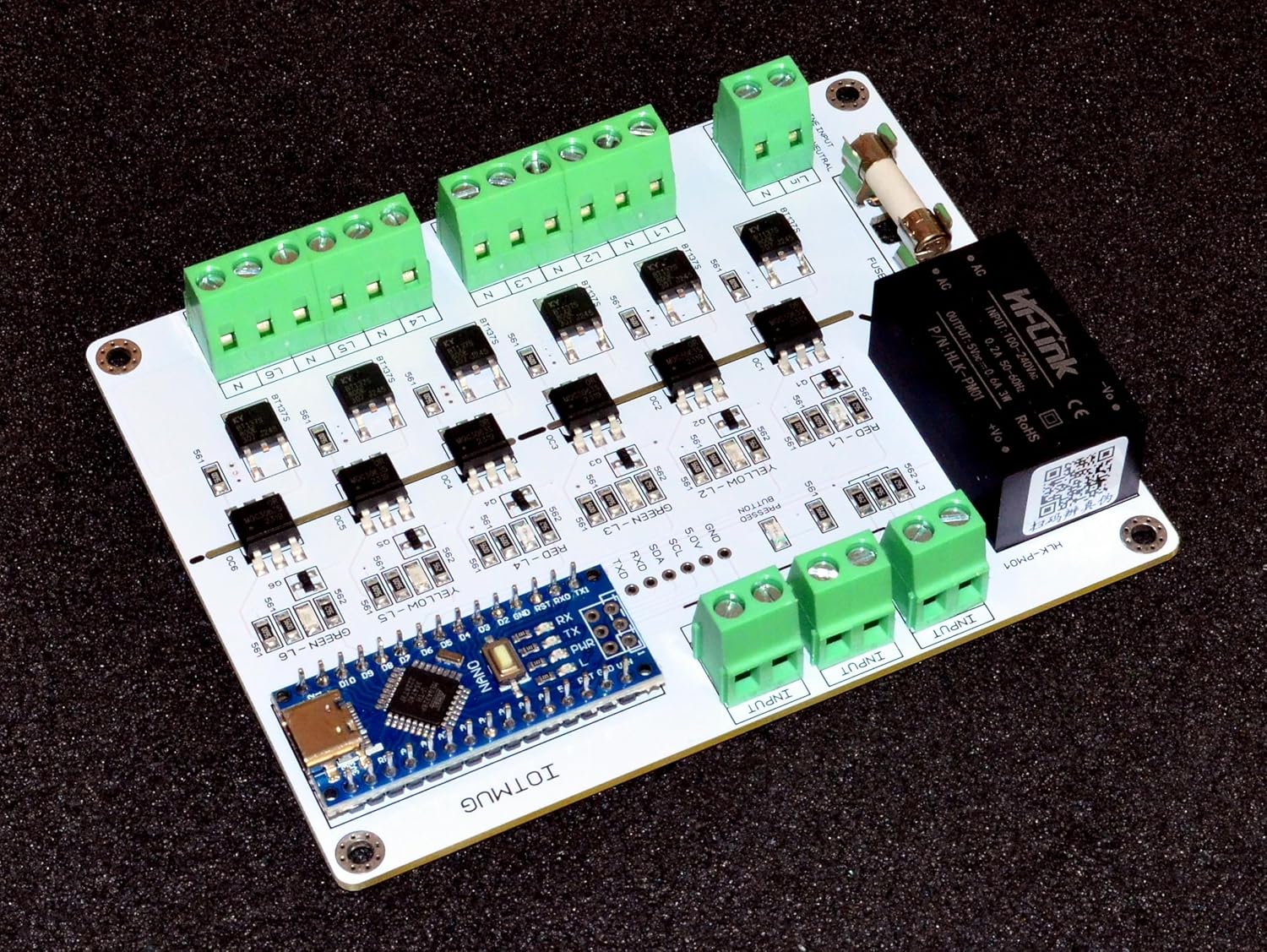

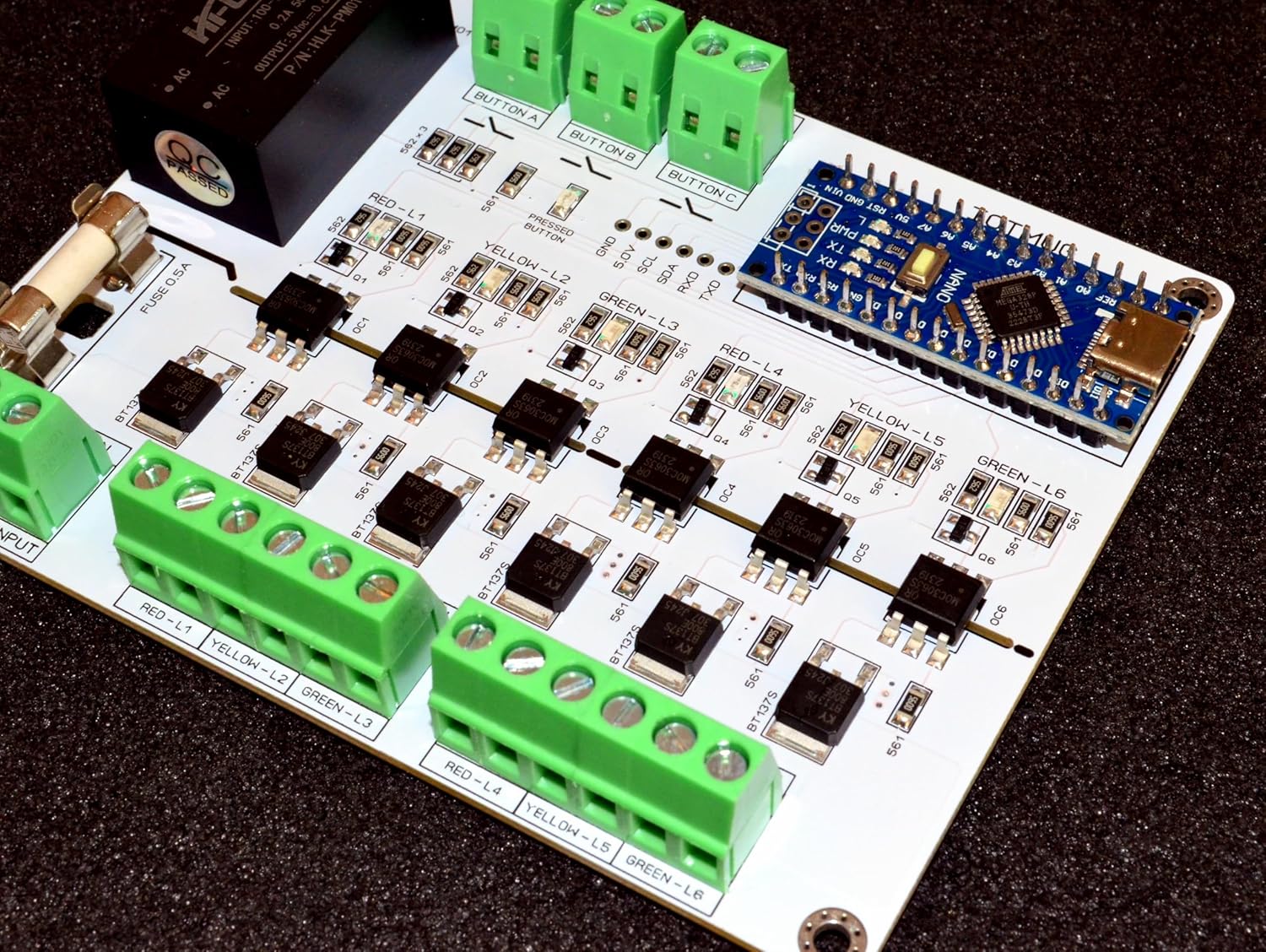

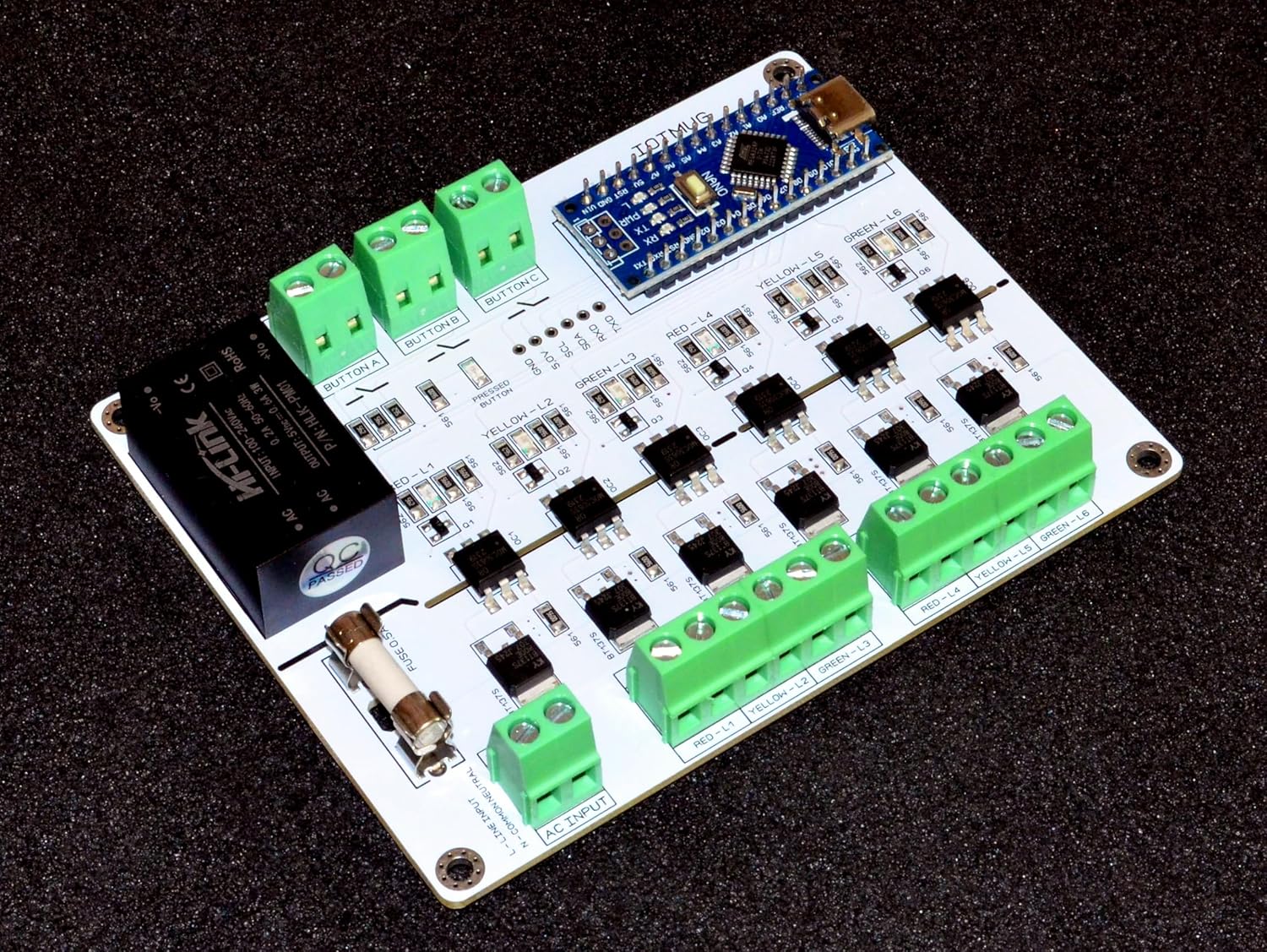

Light Signal Controller Compatible with Arduino Sequencer AC Voltage 6 Channel Solid Sate Relay SSR Programmable 100V-240VAC 50HZ-60HZ Crosswalk & Arrows RED Green Yellow Built-in LEDs

USER NEEDS TO KNOW BASIC PROGRAMMING LANGUAGEALL MANUALS IN DESCRIPTION AND PRODUCT BULLTES AREA. PLEASE SEE LINKS BEFORE YOU BUY 6CH Light Controller, programmable board Our 6 Channel Light Controller is the perfect solution for all of your signal needs. Accepting standard 120VAC and 240VAC line voltage, this controller provides 500 Watts per channel and will drive full-sized LED and incandescent lights (this includes all household incandescent and LED bulbs). This board is based with the latest solid state relays. Solid state relays technology means quiet, effortless switching for many years. Now is very simple programming all traffic lights timings. This board is Compatible With Arduino software. 6 channel light controller is compatible with Arduino Uno bootloader with ATMEGA328P microcontroller. USB-UART bridge is based on popular CH340G chip. It’s very help to user in programming all three lights timing. This board is already programmed with simple lights demo code. Also, all others demo codes are provided below. What need user to start working with this board? 1.Download and install CH340G USB driver 2.Download and install Required programming software from webpage 3.Connect device to the computer via usb cable 4.And upload demo or user written sketches to the board Device specification: PCB board dimension – 100mm x 100mm , color green PCB Board Material - 1.6 mm FR-4, with solder mask & silk screen Input Connector - 14-26AWG, 250VAC @ 16A screw terminals Output Connectors - 14-26AWG, 250VAC @ 16A screw terminals Safety fuse - 8A For more information/resources, please contact with us via amazon messaging system.

• CAUTION: This device requires basic programming knowledge. It offers unlimited lighting options because it is Compatible With Arduino programming. Customers who are not familiar with this programming language should not purchase this device.
• Min load 5W and max 500W per channel.Independent outputs channels for operating LEDs or incandescent lamps
• Full optoisolation from AC line Wide input AC voltage range 100…240VAC / 50HZ and 60HZ
• You can use this board as Development Board AC Voltages like Relay for 6 Channels. 6 Channle Development Board made is Compatible With Arduino programming. On the chip TX/REX pins are available.
• 6 Channel light controller is Compatible With Arduino uno bootloader with ATMEGA328P microcontroller. USB-UART bridge is based on popular CH340G chip. TYPE C usb port.
