Lightning Protection Component Insulation Resistance Tester Arrester Insulated Device with MOV Range 0~2000V 0~1000μA Resolution 1V/0.1uA

QIUSUO Lightning Protection Component Insulation Resistance Tester Arrester Insulated Device with MOV Range 0~2000V 0~1000μA Resolution 1V/0.1uA Technical Parameters Measure Function: MOV: Output Voltage: Initial action voltage U (1mA); Measure Range: 50～3000V;Accuracy:±2%rdg±3dgt ;Resolution:1V;Test Condition: 1mA±5μA Leakage Current: I(0.75U, 1mA);Measure Range:0 ～ 1000μA;Accuracy:±2%rdg±10dgt;Resolution: 0.1uA;Test Condition: 0.75U1mA≤±1％ ±1d Output Voltage: Measure Range: Resolution: Test Condition GDT: Output Voltage:DC breakdown voltage Vsdc; Measure Range:50～ 3000V; Accuracy: ±2%rdg±3dgt; Resolution:1V;Test Condition: 100V/S±10% Power Supply:DC 7.2V 2600mAH rechargeable lithium battery(continues working above 3 hours) Test mode:DC power drop method Shift:Automatically Display Mode:Touch color LCD, LCD size: 108mmx65mm Host Dimension:215mmx 178mmx83mm Weight:2.09kg(include accessories) Test Wire:Red wire 1M, black wire 1M Boost Speed Setting:5 boost level in total High Voltage Threshold ValueSetting:Adjusting with step “250V”, the maximum can be set to 3000V Qualified Range Setting:Yes Qualified Judgment Function:Buzzer indication, qualified ring once, unqualified three rings Overvoltage Protection:Yes Data Storage:MOV 1000 groups; GDT 1000 groups; Insulation resistance: 1000 groups, storage space used and remaining capacity indication Data Upload:USB interface, storage test record can be uploaded to computer Battery Voltage:Battery charge indication, low battery voltage remind to replace the battery Auto Shut down:25 minutes after boot up, the meter shuts down automatically without any operation Accessories:Host: 1PCS; Test wires: 2PCS; Alligator clip: 2PCS; Probe: 2PCS; Charger: 1PCS; USB communication cable: 1PCS; Meter bag: 1PCS

• With single test mode and continuous test mode selection, continuous test mode is especially suitable for batch component testing.
• Automatic storage of test results containing date and time, can store 3000 groups of test records, USB interface data upload function. Adopts rechargeable high-capacity lithium battery. Technical Specification
• Unique professional level parameter setting function: boost speed setting, high voltage limit value setting, qualified range setting, qualified judgment condition setting, field test is easy to handle.
• Tester has a stable output voltage, output voltage up to 3000V, to meet the needs of a variety of components testing. 3. unique professional-level parameter setting function: the output voltage can be adjusted to meet the needs of a variety of components.

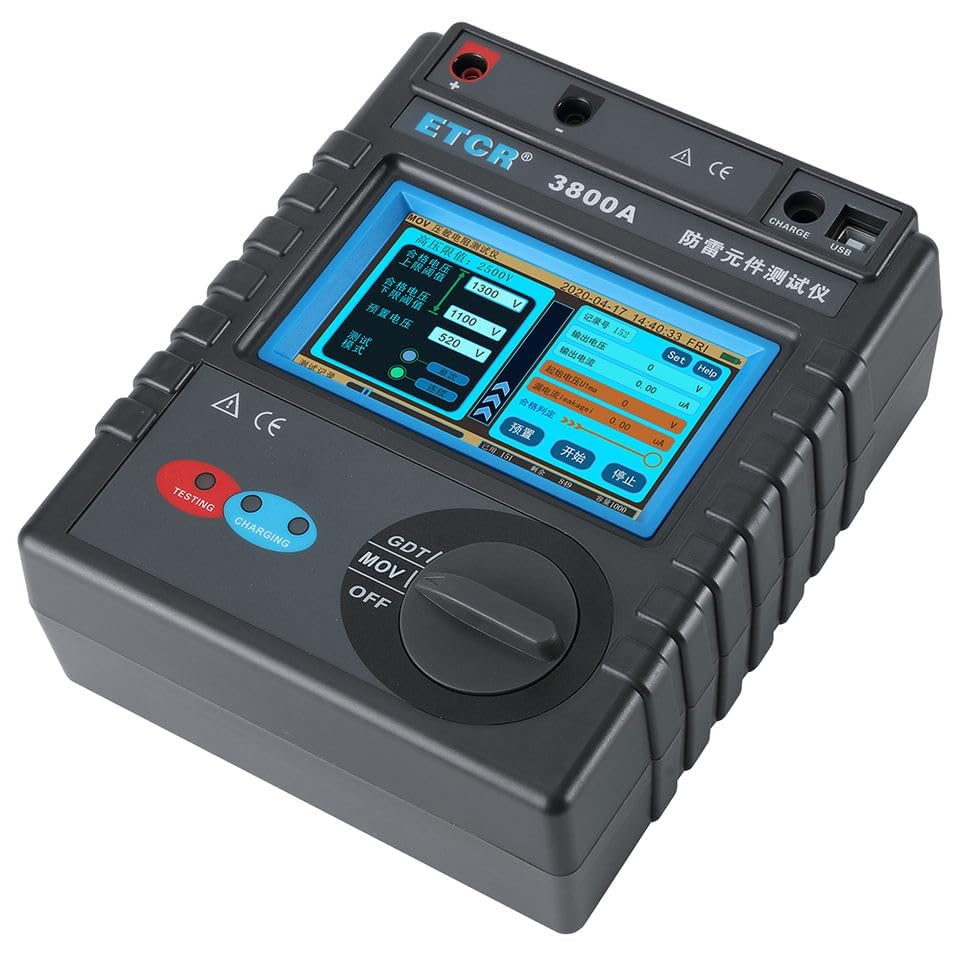

• A new generation of intelligent lightning protection components tester, touch screen color screen Chinese interface, click on the screen "HELP" can pop up the operation method, effectively guiding the user to operate the instrument.
