Planetary Gearbox Gear 35mm Input High Precision ReducerRatio 3-100:1,180mm Flange 3kw 3.5 4 4.5 5.5kw Servo Motor(Ratio 35)
4.1 (72 items)
Limited Time SaleUS$782.04 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211319266 | Release Date | 2026/04/04 | List Price | US$521.36 | Model Number | 211319266 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

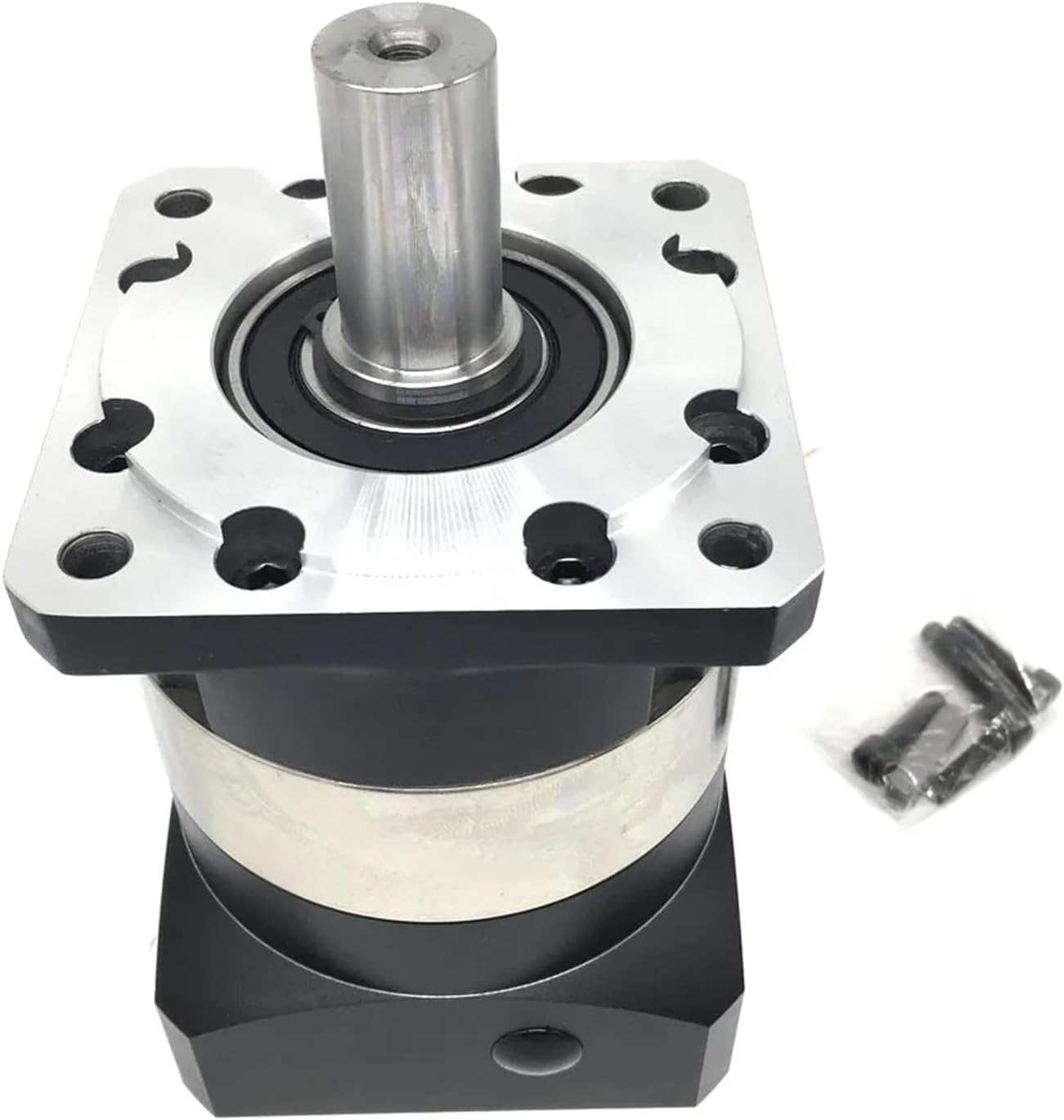

Gearboxes, Gearheads & Speed Reducers35mm Input Reducer High Precision Ratio 3-100:1 Planetary Gearbox for 180mm Flange Stepper Motor 3kw 3.5 4 4.5 5.5kw Servo Motor Servo Motor Planetary Gearbox gear 35mm Input Reducer High Precision Ratio 3-100:1,180mm Flange 3kw 3.5 4 4.5 5.5kw Servo Motor Package Included :1x Planetary Gearbox 4x Install screwsReducer parameters:Speed Ratio: 1Stage(L1): 3:1 / 4:1 / 5:1 / 7:1 / 10:12Stage(L2):20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1 Product type: Planetary GearboxInput Shaft: 35mmOutput Shaft: 40mm Rated Tq:210Nm (10:1 / 100:1) ; 358Nm (7:1 / 70:1 );364Nm(4:1 / 5:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 ) ;423Nm (3:1)Maximum Tq: 1.5* Rated TqEmergency braking Tq: 2.5* Rated TqBody length: L1=189mm,L2=230mmMatching motor type: 180mm flange Servo/Stepper Motor Backlash Precision:L17 Arcmin , L212 Arcmin Max radial force: 8000NMax axial force : 4000NTorsion rigidity: 48Nm/arcminMax input speed: 4500rpmRated input speed: 3000rpmNoise: less than 65dBService life: 20000hFull load efficiency:L196%, L294%
- Gearboxes, Gearheads & Speed Reducers
- Planetary Gearbox gear 35mm Input High Precision ReducerRatio 3-100:1,180mm Flange 3kw 3.5 4 4.5 5.5kw Servo Motor
| Model | uSgpfhAf |
|---|---|
| Brand Name | uSgpfhAf |
| Model Name | uSgpfhAf |
| Manufacturer | uSgpfhAf |
