Water Tank Level Controller 4-20mA Hydrostatic Pressure Level Sensor 30m 4-20mA(12m Cable 4-20mA)

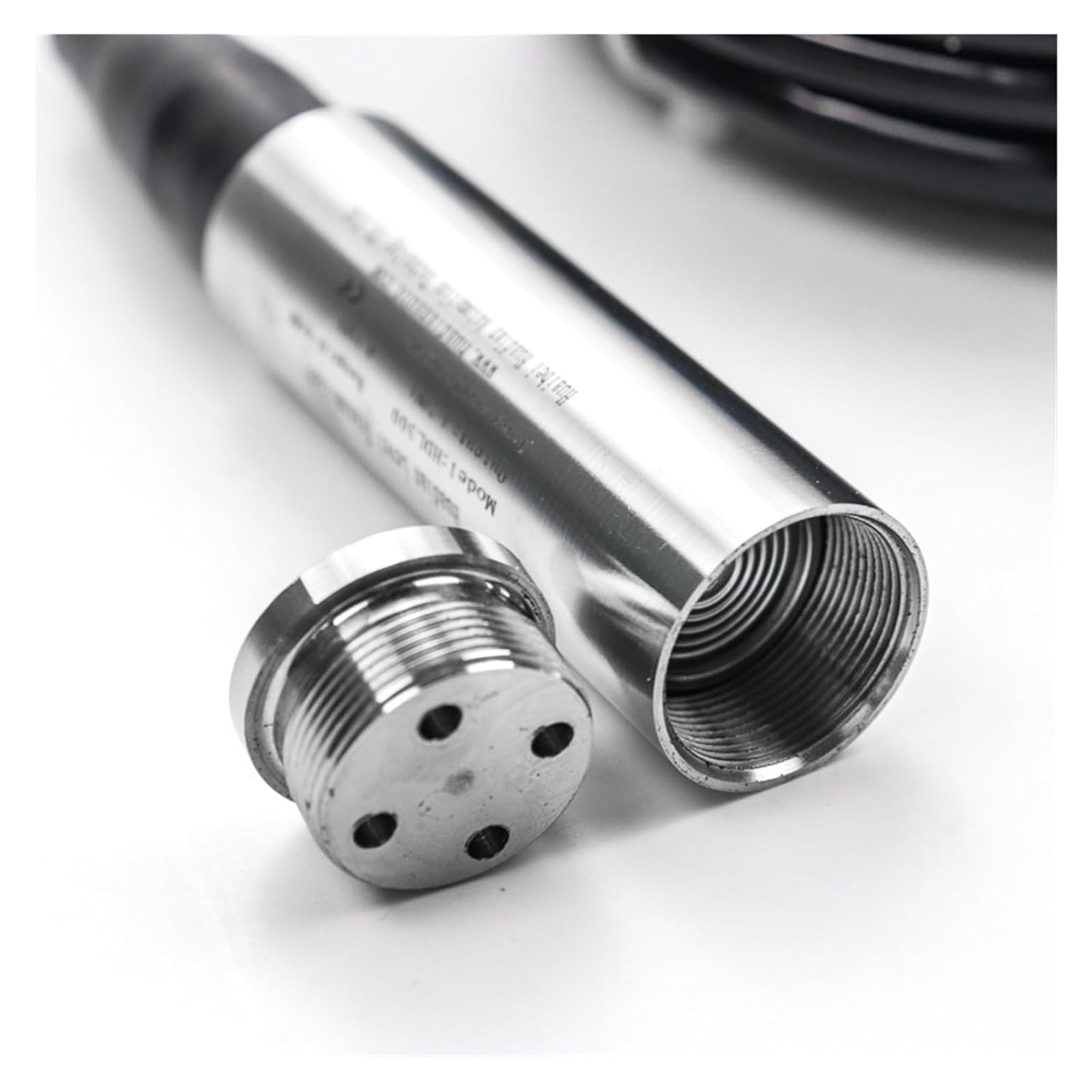

sensorSubmersible level transmitter based on the principle that the hydro static pressure of measured level is proportional to the height of this liquid adopts the piezoresistive effect of diffused silicon converts pressure into electrical signal by temperature compensation and linear calibration then converts into standard current voltage and RS485 signals and outputs .It can be directly connected with PLC/DCS display instrument and computer signal transmission also can be carried out. The level transmitter is widely used in liquids measurement of petrochemical water supply and drainage environmental protection and electric power.Features1)One-piece design2)Multiple Output optional 4-20mA;0-5V;0-10V;RS4853)High accurac high reliable and high stability5) Measuring range 0-500m optional6) The protection class is IP68 can work under the water.Technical ParametersMeasuring range: 5meters (Customized for high level up to 500 meters )Medium : LiquidOutput :4-20mA or 0-5V;0-10V;RS4885Power supply :18-36VDCAccuracy :0.25%F.STemperature :-20~80CProtection class : IP68Probe material :stainless steel 304Cable length :6meters

• sensor
• 【Stable and Reliable】 The liquid level sensor is designed with precision compensation technology and the components are sensitive stable and reliable.
• 【Multiple Pressure Ranges】Multiple ranges are available for you to choose from sufficient to meet your purchasing needs.
• 【Easy to install and operate】The level sensor is lightweight small in size and easy to install and operate.
• 【Widely used】 Diesel oil underwater level sensor wastewater.suitable for a bad environment
